実用的な用途を想定した広義の AI 開発において重要になるのは、ニューラルネットワークのモデル構造の詳細ではなく、学習させたモデルをどのように使うのか、といった応用面であることが多い。
広義の AI を構成するプログラム部分はそのままに、ニューラルネットワークのモデルのみを入れ替えることで AI 機能を拡張する手法をやってみる。
「PyTorch ではじめる AI開発」の著者が公開している OCR プログラムのニューラルネットワークのモデルのみを差し替えることで新しい OCR を作成する。
→ 以前の検証 日本語OCR の検証

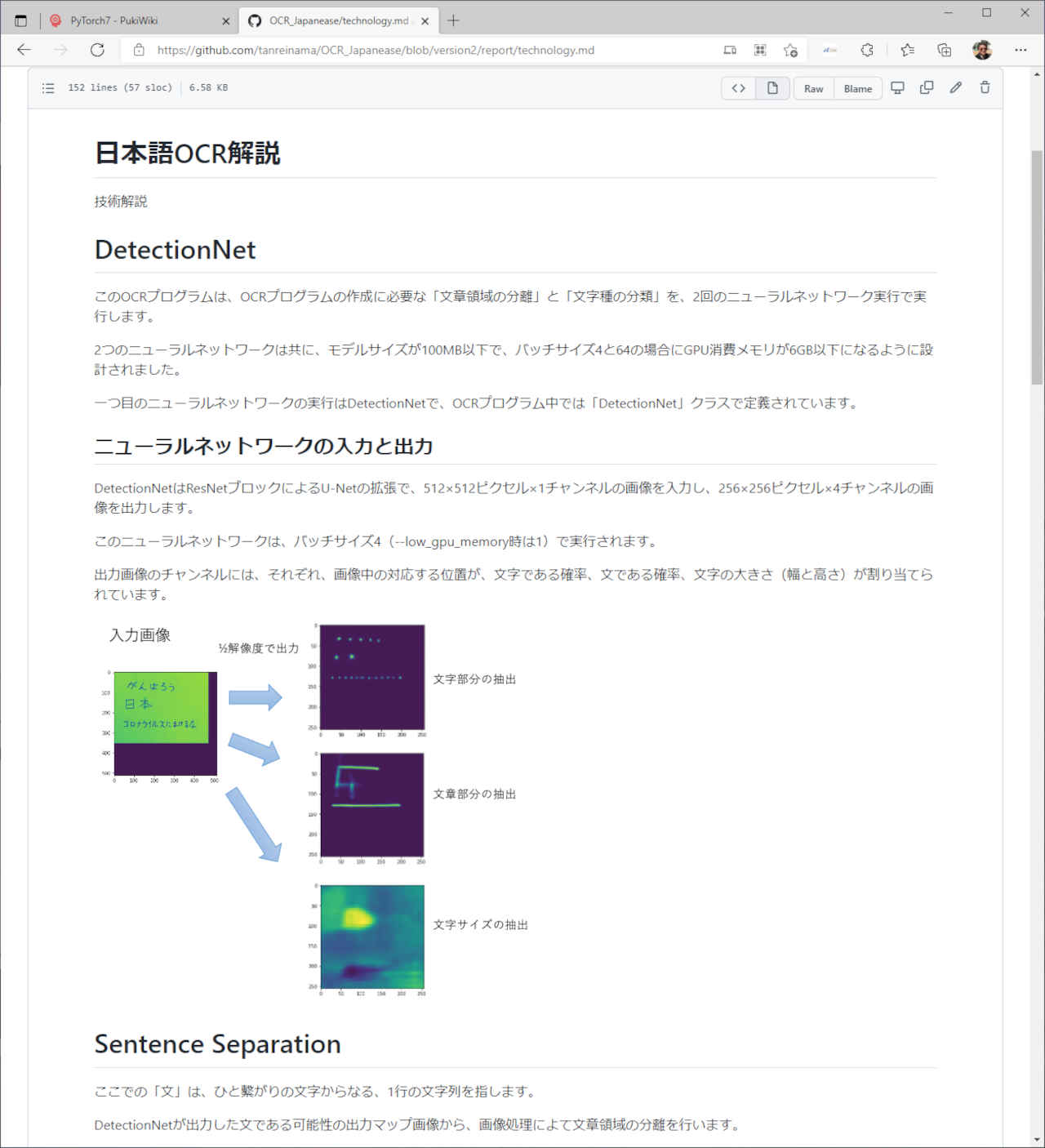

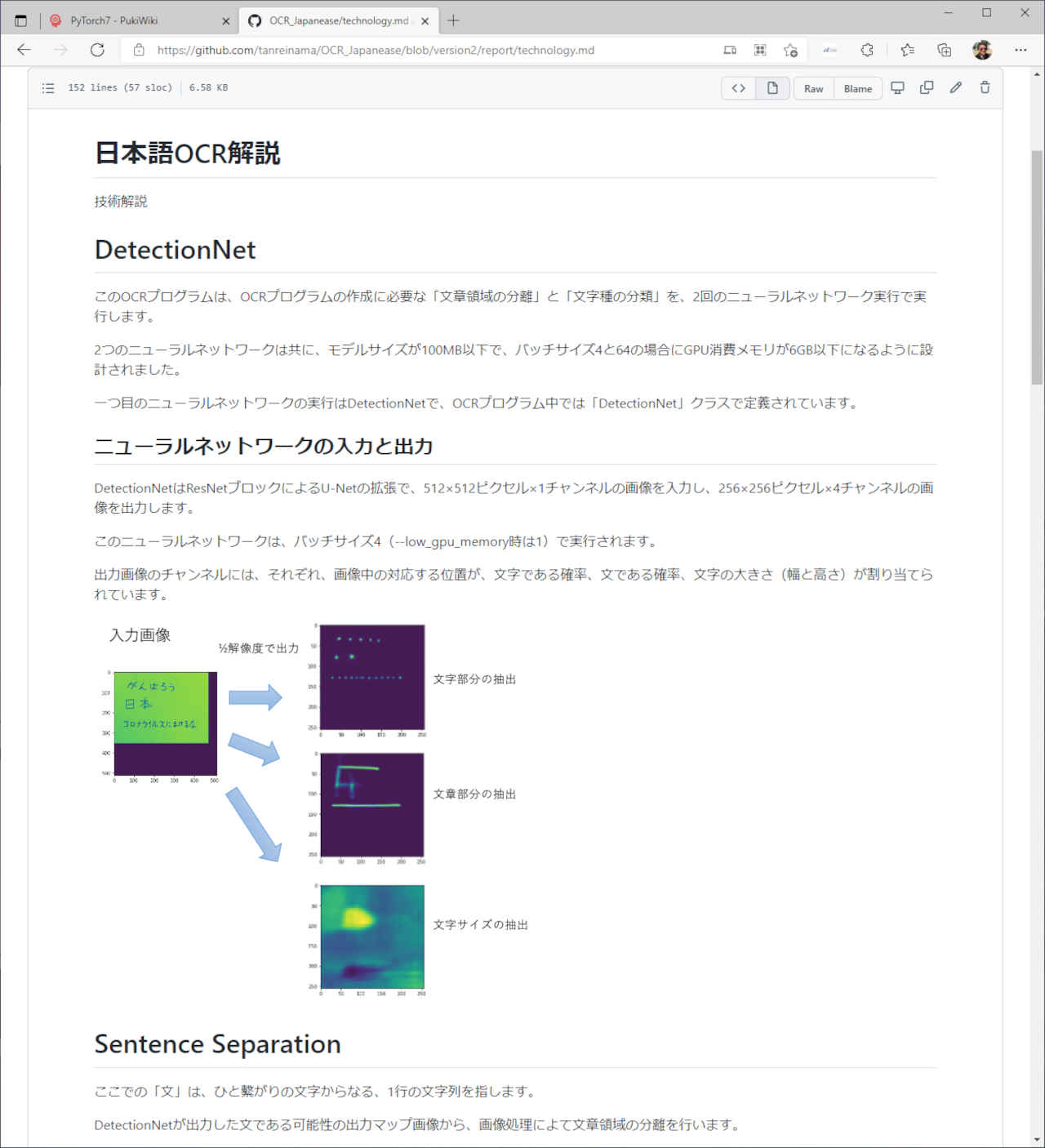

著者のサイト「日本語OCR解説」に詳しい解説がある。
ここでは理解のため、本書の内容をまとめる。(説明の図は著者のサイトからの引用)
(py37) $ cd ~/workspace_py37/ (py37) $ mkdir chapter08 (py37) $ cd chapter08

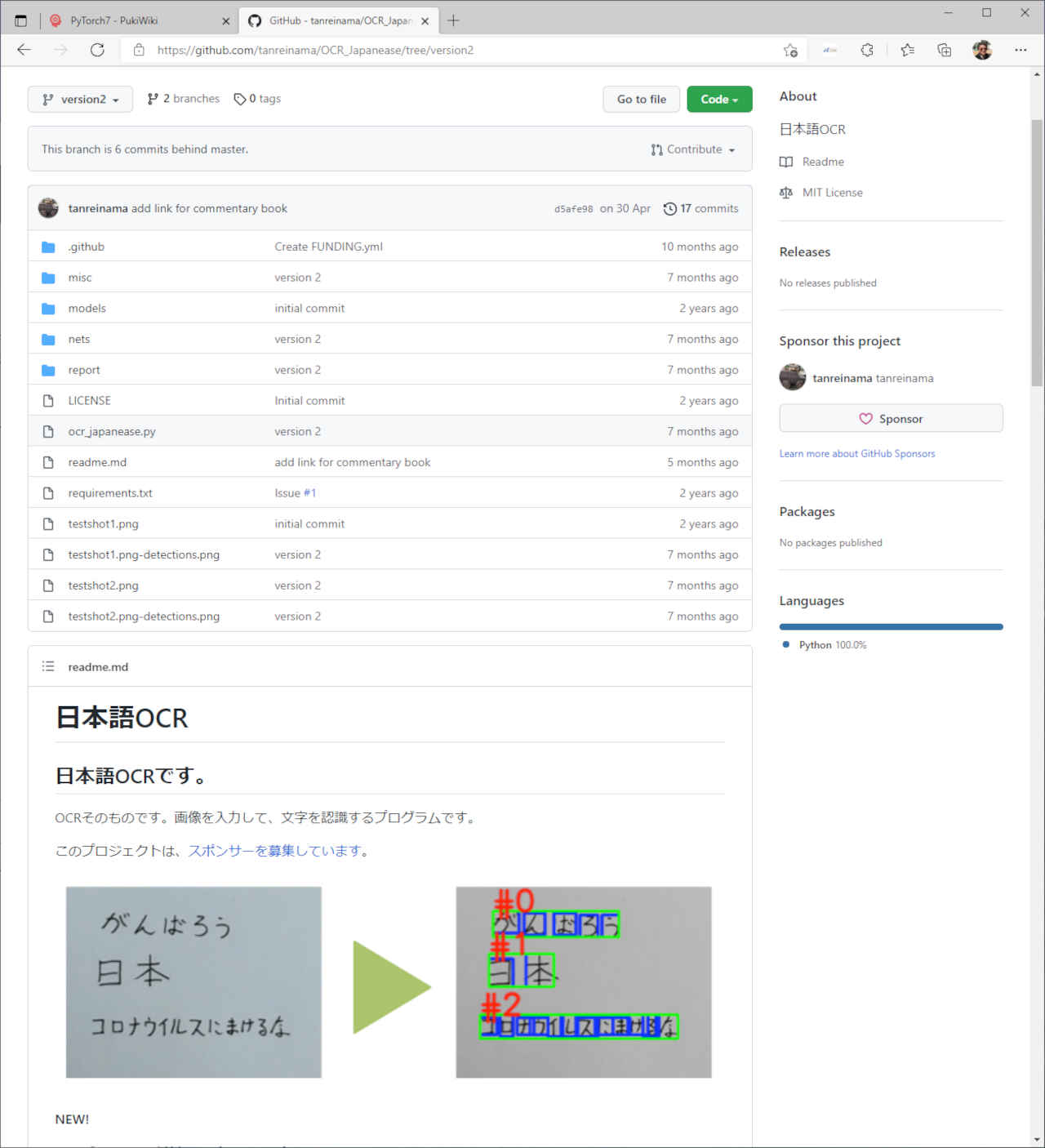

(py37) $ git clone -b version2 https://github.com/tanreinama/OCR_Japanease/ Cloning into 'OCR_Japanease'... remote: Enumerating objects: 128, done. remote: Counting objects: 100% (128/128), done. remote: Compressing objects: 100% (97/97), done. remote: Total 128 (delta 57), reused 80 (delta 24), pack-reused 0 Receiving objects: 100% (128/128), 3.46 MiB | 21.32 MiB/s, done. Resolving deltas: 100% (57/57), done. (py37) $ ls OCR_Japanease
(py37) $ cd OCR_Japanease/ (py37) $ wget https://nama.ne.jp/models/ocr_jp-v2.zip --2021-10-11 16:34:14-- https://nama.ne.jp/models/ocr_jp-v2.zip nama.ne.jp (nama.ne.jp) をDNSに問いあわせています... 112.78.112.176 nama.ne.jp (nama.ne.jp)|112.78.112.176|:443 に接続しています... 接続しました。 HTTP による接続要求を送信しました、応答を待っています... 200 OK 長さ: 180256769 (172M) [application/zip] `ocr_jp-v2.zip' に保存中 ocr_jp-v2.zip 100%[===================>] 171.91M 11.6MB/s in 14s 2021-10-11 16:34:28 (12.2 MB/s) - `ocr_jp-v2.zip' へ保存完了 [180256769/180256769] (py37) $ unzip ocr_jp-v2.zip Archive: ocr_jp-v2.zip inflating: models/detectionnet.model inflating: models/classifiernet.model (py37) $ cp -r models OCR_Japanease/

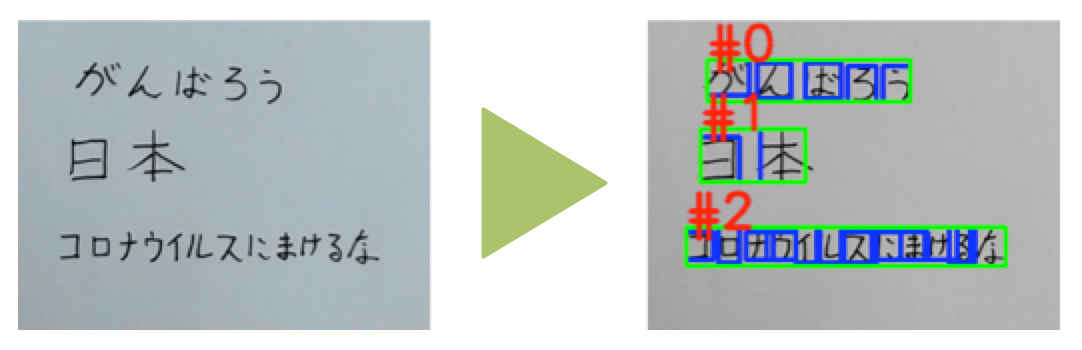

(py37) $ python3 ocr_japanease.py --cpu testshot1.png file "testshot1.png" detected in 72 dpi. [Block #0] コロナウイルスにまけるな [Block #1] がんばろう [Block #2] 日本
| 認識する領域 | 領域の意味 | プログラム内での定義 | データ構造 |

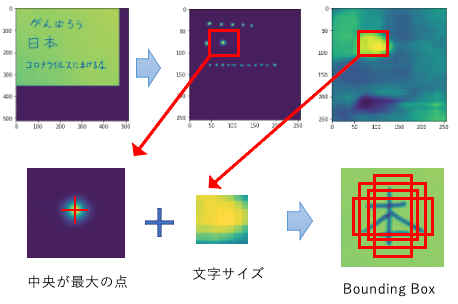

| 文字 | 日本語に文字一つを含む領域 | BoundingBoxクラス | 入力画像中の矩形領域 |

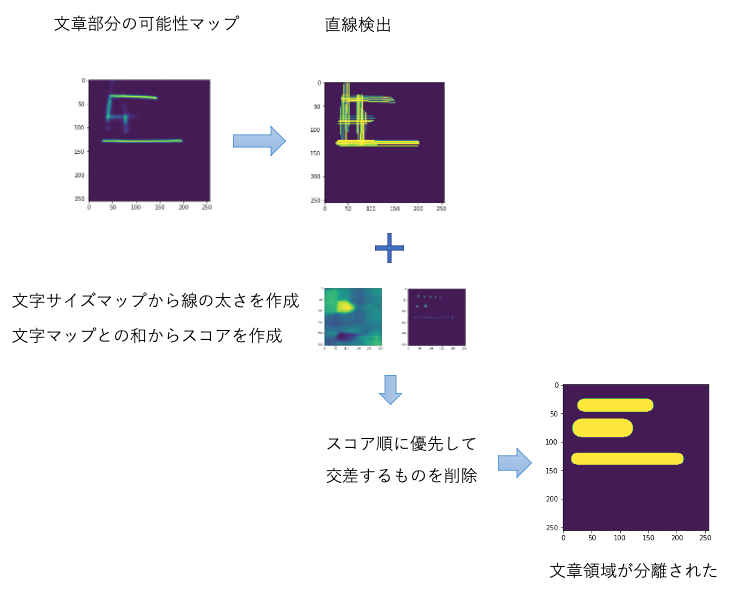

| 文 | 一連の文字の連なりからなる1行の文字列領域 | CenterLineクラス | 中心線の始点と終点 |

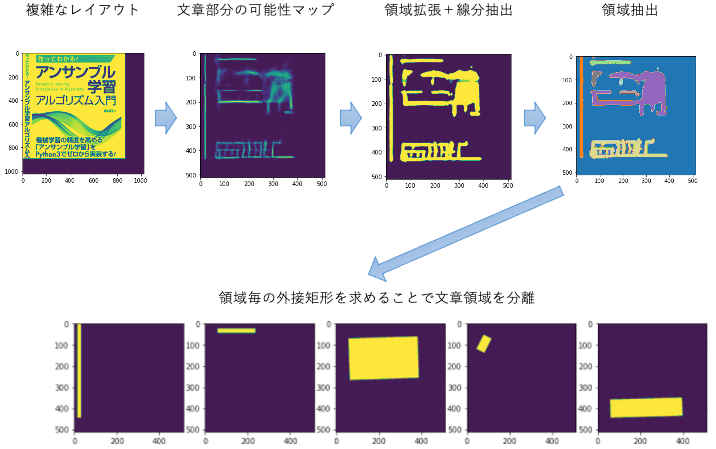

| 文章 | 複数の文を含むかもしれない一連の領域 | SentenceBoxクラス | BoundingBoxクラスのリスト |

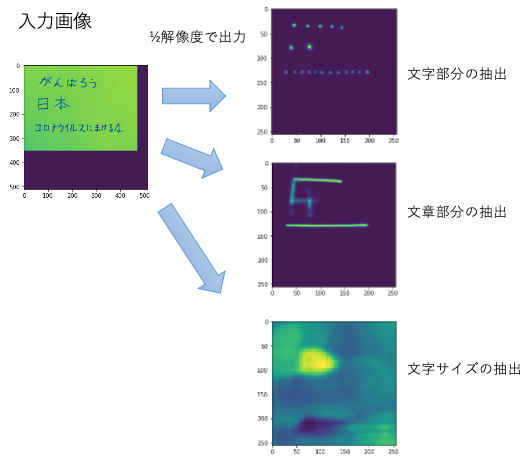

| 出力 | チャンネル数 | プログラム中の変数名 |
| 文字である確率マップ画像 | 1 | hm_wd |
| 文である確率マップ画像 | 1 | hm_sent |
| 文字の場合の大きさ | 2 | hm_pos |
import numpy as np
import cv2
import torch
import math
from sklearn.cluster import OPTICS
from .structure import BoundingBox, SentenceBox, CenterLine
from .nihongo import nihongo_class
class BoundingBoxDataset(object):
def __init__(self, org_img, scale_wh, boundbox, output_size=(56,56)):
self.org_img = org_img
self.scale_wh = scale_wh
self.boundbox = boundbox
self.output_size = output_size
def __getitem__(self, idx):
bb = self.boundbox[idx]
x1, y1, x2, y2 = bb.x1 * 2, bb.y1 * 2, bb.x2 * 2, bb.y2 * 2
x1 = int(np.round(x1 * self.scale_wh[0]))
y1 = int(np.round(y1 * self.scale_wh[1]))
x2 = int(np.round(x2 * self.scale_wh[0]))
y2 = int(np.round(y2 * self.scale_wh[1]))
x1 = min(max(0, x1), self.org_img.shape[1])
y1 = min(max(0, y1), self.org_img.shape[0])
x2 = min(max(0, x2), self.org_img.shape[1])
y2 = min(max(0, y2), self.org_img.shape[0])
im = self.org_img[y1:y2,x1:x2]
if im.shape[0]==0 or im.shape[1]==0:
im = np.zeros((1,1))
im = cv2.resize(im, self.output_size)
im = im.reshape((1,self.output_size[1],self.output_size[0]))
return im.astype(np.float32) / 255.
def __len__(self):
return len(self.boundbox)
class Detector(object):
def __init__(self, use_cuda=True, word_threshold=0.01, class_threshold=0.25, low_gpu_memory=False):
self.use_cuda = use_cuda
self.word_threshold = word_threshold
self.class_threshold = class_threshold
self.low_gpu_memory = low_gpu_memory
def _preprocess(self, hm_wd, hm_sent, hm_pos, simple_mode_lines=5, hm_dup=2.5, high_threshold=0.5, low_threshold=0.15):
ln = np.clip((hm_sent*255),0,255).astype(np.uint8)
lines = cv2.HoughLinesP(ln, rho=2, theta=np.pi/360, threshold=80, minLineLength=30, maxLineGap=15)
center_ln = [] # Center line detection
for line in lines:
x1, y1, x2, y2 = line[0]
cl = CenterLine(hm_sent, hm_wd, hm_pos, [x1, y1], [x2, y2])
center_ln.append(cl)
lines = sorted(center_ln, key=lambda x: x.score)[::-1]
drops = [] # NMS for line (drop duplicate line)
for i in range(len(lines)):
if i not in drops:
cur = lines[i]
for j in range(i+1, len(lines), 1):
otr = lines[j]
if cur.contain(otr) and j not in drops:
cur.score += otr.score
drops.append(j)
lines = [l for i,l in enumerate(lines) if i not in drops]
drops = [] # NMS for line (drop cross line)
for i in range(len(lines)):
if i not in drops:
cur = lines[i]
for j in range(i+1, len(lines), 1):
otr = lines[j]
if cur.cross(otr) and j not in drops:
drops.append(j)
lines = [l for i,l in enumerate(lines) if i not in drops]
if len(lines) <= simple_mode_lines: # simple image
all_map = []
for line in lines:
out = np.zeros(hm_sent.shape, dtype=np.uint8)
out = cv2.line(out, tuple(line.p1), tuple(line.p2), (255,255,255), line.maxw*2)
all_map.append(out)
return all_map, None
else:
wd_size_avg = (int(np.round(hm_pos[0][hm_pos[0]!=0].mean()*hm_pos[0].shape[1])),
int(np.round(hm_pos[1][hm_pos[1]!=0].mean()*hm_pos[1].shape[0])))
kernel = cv2.getStructuringElement(cv2.MORPH_CROSS, wd_size_avg)
out = np.zeros(hm_sent.shape, dtype=np.uint8)
for line in lines:
out = cv2.line(out, tuple(line.p1), tuple(line.p2), (255,255,255), line.maxw*2)
flt = hm_sent.copy() * hm_dup
flt[hm_sent>high_threshold] = 1
hm_sent_preprocessed = np.clip(flt+out/255,0,1)
hm_sent_preprocessed[hm_sent<=low_threshold] = 0
hm_sent_preprocessed = cv2.dilate(hm_sent_preprocessed, kernel)
return None, hm_sent_preprocessed
def _get_class(self, im, size=128):
minmax = (im.min(), im.max())
if minmax[1]-minmax[0] == 0:
return np.array([])
im = (im-minmax[0]) / (minmax[1]-minmax[0])
sc = cv2.resize(im, (size,size), interpolation=cv2.INTER_NEAREST)
clf = OPTICS(max_eps=5, metric='euclidean', min_cluster_size=75)
a = []
for x in range(sc.shape[0]):
for y in range(sc.shape[1]):
if sc[x][y] > 0.01:
a.append([x,y])
b = clf.fit_predict(a)
p = {v:k for k,v in enumerate(set(b))}
b = [p[j] for j in b]
c = np.zeros(sc.shape, dtype=np.int32)
for i in range(len(b)):
c[a[i][0],a[i][1]] = b[i]+1
c = cv2.resize(c, (im.shape[1], im.shape[0]), interpolation=cv2.INTER_NEAREST)
return c
def _get_map(self, clz_map):
all_map = []
for i in range(1,int(np.max(clz_map)+1)):
clz_wd = np.zeros(clz_map.shape, dtype=np.uint8)
where = np.where(clz_map == i)
clz_wd[where] = 255
cnts = cv2.findContours(clz_wd, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
cnts = cnts[0] if len(cnts) == 2 else cnts[1]
for cnt in cnts:
rect = cv2.minAreaRect(cnt)
box = cv2.boxPoints(rect).reshape((-1,1,2)).astype(np.int32)
cv2.drawContours(clz_wd,[box],0,255,2)
cv2.drawContours(clz_wd,[box],0,255,-1)
all_map.append(clz_wd)
return all_map
def _filt_map(self, all_map):
maps = []
dindx = []
for i1, m1 in enumerate(all_map):
for i2, m2 in enumerate(all_map):
if i1 != i2:
if np.sum(m2[m1 != 0]) == np.sum(m2):
dindx.append(i2)
for i1, m1 in enumerate(all_map):
if not i1 in dindx:
for i2, m2 in enumerate(all_map[i1+1:]):
an = ((m1 == 0) + (m2 == 0)) == 0
if np.sum(an) != 0:
if np.sum(m1) > np.sum(m2):
m2[an] = 0
else:
m1[an] = 0
maps.append(m1)
return np.array(sorted(maps, key=lambda x:-np.sum(x)))
def _scale_image(self, img, long_size):
if img.shape[0] < img.shape[1]:
scale = img.shape[1] / long_size
size = (long_size, math.ceil(img.shape[0] / scale))
else:
scale = img.shape[0] / long_size
size = (math.ceil(img.shape[1] / scale), long_size)
return cv2.resize(img, size, interpolation=cv2.INTER_CUBIC)
def _detect1x(self, detector_model, gray_img_scaled):
im = np.zeros((1,1,512,512))
im[0,0,0:gray_img_scaled.shape[0],0:gray_img_scaled.shape[1]] = gray_img_scaled
x = np.clip(im / 255, 0.0, 1.0).astype(np.float32)
x = torch.tensor(x)
dp = detector_model
if self.use_cuda:
dp = torch.nn.DataParallel(detector_model)
x = x.cuda()
dp = dp.cuda()
dp.eval()
y = dp(x)
hm_wd = y['hm_wd'].detach().cpu().numpy().reshape(256,256)
hm_sent = y['hm_sent'].detach().cpu().numpy().reshape(256,256)
hm_pos = y['of_size'].detach().cpu().numpy().reshape(2,256,256)
del x, y
if self.use_cuda:
torch.cuda.empty_cache()
return hm_wd, hm_sent, hm_pos
def _detect4x(self, detector_model, gray_img_scaled):
tmp = np.zeros((1024,1024))
tmp[0:gray_img_scaled.shape[0],0:gray_img_scaled.shape[1]] = gray_img_scaled
im = np.zeros((4,1,512,512))
im[0,0] = tmp[0:512,0:512]
im[1,0] = tmp[512:1024,0:512]
im[2,0] = tmp[0:512,512:1024]
im[3,0] = tmp[512:1024,512:1024]
x = np.clip(im / 255, 0.0, 1.0).astype(np.float32)
if (not self.low_gpu_memory) or (not self.use_cuda):
x = torch.tensor(x)
dp = detector_model
if self.use_cuda:
dp = torch.nn.DataParallel(detector_model)
x = x.cuda()
dp = dp.cuda()
dp.eval()
y = dp(x)
org_hm_wd = [y['hm_wd'][i].detach().cpu().numpy().reshape(256,256) for i in range(4)]
org_hm_sent = [y['hm_sent'][i].detach().cpu().numpy().reshape(256,256) for i in range(4)]
org_of_size = [y['of_size'][i].detach().cpu().numpy().reshape(2,256,256) / 2 for i in range(4)]
del x, y
if self.use_cuda:
torch.cuda.empty_cache()
else:
org_hm_wd, org_hm_sent, org_of_size = [], [], []
for i in range(4):
_x = torch.tensor([x[i]])
dp = detector_model
if self.use_cuda:
dp = torch.nn.DataParallel(detector_model)
_x = _x.cuda()
dp = dp.cuda()
dp.eval()
y = dp(_x)
org_hm_wd.append(y['hm_wd'][0].detach().cpu().numpy().reshape(256,256))
org_hm_sent.append(y['hm_sent'][0].detach().cpu().numpy().reshape(256,256))
org_of_size.append(y['of_size'][0].detach().cpu().numpy().reshape(2,256,256) / 2)
del _x, y
if self.use_cuda:
torch.cuda.empty_cache()
del x
hm_wd = np.zeros((512,512))
hm_sent = np.zeros((512,512))
hm_pos = np.zeros((2,512,512))
hm_wd[0:256,0:256] = org_hm_wd[0]
hm_wd[256:512,0:256] = org_hm_wd[1]
hm_wd[0:256,256:512] = org_hm_wd[2]
hm_wd[256:512,256:512] = org_hm_wd[3]
hm_sent[0:256,0:256] = org_hm_sent[0]
hm_sent[256:512,0:256] = org_hm_sent[1]
hm_sent[0:256,256:512] = org_hm_sent[2]
hm_sent[256:512,256:512] = org_hm_sent[3]
hm_pos[:,0:256,0:256] = org_of_size[0]
hm_pos[:,256:512,0:256] = org_of_size[1]
hm_pos[:,0:256,256:512] = org_of_size[2]
hm_pos[:,256:512,256:512] = org_of_size[3]
return hm_wd, hm_sent, hm_pos
def _detect16x(self, detector_model, gray_img_scaled):
tmp = np.zeros((2048,2048))
tmp[0:gray_img_scaled.shape[0],0:gray_img_scaled.shape[1]] = gray_img_scaled
hm_wd = np.zeros((1024,1024))
hm_sent = np.zeros((1024,1024))
hm_pos = np.zeros((2,1024,1024))
dp = detector_model
if self.use_cuda:
dp = torch.nn.DataParallel(detector_model)
dp = dp.cuda()
dp.eval()
for ygrid_i in range(4):
im = np.zeros((4,1,512,512))
im[0,0] = tmp[512*ygrid_i:512*ygrid_i+512,0:512]
im[1,0] = tmp[512*ygrid_i:512*ygrid_i+512,512:1024]
im[2,0] = tmp[512*ygrid_i:512*ygrid_i+512,1024:1536]
im[3,0] = tmp[512*ygrid_i:512*ygrid_i+512,1536:2048]
x = np.clip(im / 255, 0.0, 1.0).astype(np.float32)
if (not self.low_gpu_memory) or (not self.use_cuda):
x = torch.tensor(x)
if self.use_cuda:
x = x.cuda()
y = dp(x)
org_hm_wd = [y['hm_wd'][i].detach().cpu().numpy().reshape(256,256) for i in range(4)]
org_hm_sent = [y['hm_sent'][i].detach().cpu().numpy().reshape(256,256) for i in range(4)]
org_of_size = [y['of_size'][i].detach().cpu().numpy().reshape(2,256,256) / 4 for i in range(4)]
del x, y
if self.use_cuda:
torch.cuda.empty_cache()
else:
org_hm_wd, org_hm_sent, org_of_size = [], [], []
for i in range(4):
_x = torch.tensor([x[i]])
dp = torch.nn.DataParallel(detector_model)
if self.use_cuda:
_x = _x.cuda()
dp = dp.cuda()
dp.eval()
y = dp(_x)
org_hm_wd.append(y['hm_wd'][0].detach().cpu().numpy().reshape(256,256))
org_hm_sent.append(y['hm_sent'][0].detach().cpu().numpy().reshape(256,256))
org_of_size.append(y['of_size'][0].detach().cpu().numpy().reshape(2,256,256) / 4)
del _x, y
if self.use_cuda:
torch.cuda.empty_cache()
del x
hm_wd[256*ygrid_i:256*ygrid_i+256,0:256] = org_hm_wd[0]
hm_wd[256*ygrid_i:256*ygrid_i+256,256:512] = org_hm_wd[1]
hm_wd[256*ygrid_i:256*ygrid_i+256,512:768] = org_hm_wd[2]
hm_wd[256*ygrid_i:256*ygrid_i+256,768:1024] = org_hm_wd[3]
hm_sent[256*ygrid_i:256*ygrid_i+256,0:256] = org_hm_sent[0]
hm_sent[256*ygrid_i:256*ygrid_i+256,256:512] = org_hm_sent[1]
hm_sent[256*ygrid_i:256*ygrid_i+256,512:768] = org_hm_sent[2]
hm_sent[256*ygrid_i:256*ygrid_i+256,768:1024] = org_hm_sent[3]
hm_pos[:,256*ygrid_i:256*ygrid_i+256,0:256] = org_of_size[0]
hm_pos[:,256*ygrid_i:256*ygrid_i+256,256:512] = org_of_size[1]
hm_pos[:,256*ygrid_i:256*ygrid_i+256,512:768] = org_of_size[2]
hm_pos[:,256*ygrid_i:256*ygrid_i+256,768:1024] = org_of_size[3]
return hm_wd, hm_sent, hm_pos
def _get_maps(self, detector_model, gray_img, dpi, min_word_size_cm):
if dpi == 0:
img_size = max(gray_img.shape)
if img_size <= 512:
detect_size = 512
elif img_size <= 1024:
detect_size = 1024
else:
detect_size = 2048
div_size = min(img_size, 2048)
else:
long_size = max(gray_img.shape)
inch_size = long_size / dpi
pix_size = int(np.round(52 * (inch_size * 2.54)))
if pix_size <= 512:
detect_size = 512
elif pix_size <= 1024:
detect_size = 1024
else:
detect_size = 2048
div_size = min(pix_size,detect_size)
pix_image = self._scale_image(gray_img, div_size)
gray_img_scaled = np.zeros((detect_size, detect_size), dtype=np.uint8)
gray_img_scaled[0:pix_image.shape[0],0:pix_image.shape[1]] = pix_image
scale_image = (gray_img.shape[1]/pix_image.shape[1], gray_img.shape[0]/pix_image.shape[0])
with torch.no_grad():
if detect_size == 512:
hm_wd, hm_sent, hm_pos = self._detect1x(detector_model, gray_img_scaled)
elif detect_size == 1024:
hm_wd, hm_sent, hm_pos = self._detect4x(detector_model, gray_img_scaled)
elif detect_size == 2048:
hm_wd, hm_sent, hm_pos = self._detect16x(detector_model, gray_img_scaled)
hm_wd[np.mean(hm_pos, axis=0) < 0.01] = 0
hm_sent[np.mean(hm_pos, axis=0) < 0.01] = 0
return pix_image, scale_image, hm_wd, hm_sent, hm_pos
def _find_best_dpi(self, detector_model, gray_img, dpi, min_word_size_cm):
tests = []
for testdpi in (72,100,150,200,300):
res = self._get_maps(detector_model, gray_img, testdpi, min_word_size_cm)
tests.append((testdpi, np.sum(res[3] > 0.01) / (res[3].shape[0]*res[3].shape[1]), res))
result = sorted(tests, key=lambda x:x[1])[-1]
return result[0], result[2]
def detect_image(self, detector_model, gray_img, dpi=72, min_word_size_cm=0.5):
min_bound = int(np.round(min_word_size_cm * dpi / 2.54))
if dpi >= 0:
pix_image, scale_image, hm_wd, hm_sent, hm_pos = self._get_maps(detector_model, gray_img, dpi, min_word_size_cm)
else:
dpi, (pix_image, scale_image, hm_wd, hm_sent, hm_pos) = self._find_best_dpi(detector_model, gray_img, dpi, min_word_size_cm)
all_map, hm_sent_preprocessed = self._preprocess(hm_wd, hm_sent, hm_pos)
if hm_sent_preprocessed is not None:
class_map = self._get_class(hm_sent_preprocessed)
all_map = self._get_map(class_map)
all_map = self._filt_map(all_map)
sent_box = []
for i, now_map in enumerate(all_map):
clz_wd = hm_wd.copy()
clz_wd[now_map == 0] = 0
clz_wd = (clz_wd - np.min(clz_wd)) / (np.max(clz_wd) - np.min(clz_wd))
sbox = SentenceBox(self.word_threshold)
sbox.make_boundingbox(clz_wd, hm_pos, min_bound)
if len(sbox.boundingboxs) > 0:
sent_box.append(sbox)
return dpi, sent_box, gray_img, scale_image, hm_wd
def _bounding_box(self, classifier_model, gray_img, scale_image, boundings, batch_size_classifier, num_workers):
dataset = BoundingBoxDataset(gray_img, scale_image, boundings)
loader = torch.utils.data.DataLoader(dataset, batch_size=batch_size_classifier, shuffle=False, num_workers=num_workers)
with torch.no_grad():
dp = torch.nn.DataParallel(classifier_model)
if self.use_cuda:
dp = dp.cuda()
dp.eval()
num_pred = 0
for x in loader:
if self.use_cuda:
x = x.cuda()
val = dp(x)
val = torch.nn.functional.softmax(val, dim=1)
val = val.detach().cpu().numpy()
for v in val:
boundings[num_pred].set_prediction(v.copy())
num_pred += 1
del x
del dp
if self.use_cuda:
torch.cuda.empty_cache()
def bounding_box(self, classifier_model, detection, batch_size_classifier=64, num_workers=2, repeat_box=1):
if self.low_gpu_memory:
batch_size_classifier = batch_size_classifier//8
dpi, sent_box, gray_img, scale_image, hm_wd = detection
for i, sbox in enumerate(sent_box):
sbox.make_sentenceid(i)
sbox.make_detectionscore(hm_wd)
all_bounding = sum([sbox.boundingboxs for sbox in sent_box], [])
ignore_idx = []
self._bounding_box(classifier_model, gray_img, scale_image, all_bounding, batch_size_classifier, num_workers)
for _ in range(repeat_box):
extra_bounding = []
for i, bbox in enumerate(all_bounding):
if (not bbox.iswordbox()) and (i not in ignore_idx):
ignore_idx.append(i)
classindex = np.argmax(bbox.prediction)
if classindex == len(nihongo_class): # 横並び
w, h = bbox.x2 - bbox.x1, bbox.y2 - bbox.y1
cx = (bbox.x1 + bbox.x2) // 2
if cx-w > 0:
b1 = BoundingBox(cx-w, bbox.y1, cx, bbox.y2)
b1.sentenceindex = bbox.sentenceindex
extra_bounding.append(b1)
if cx+w < hm_wd.shape[1]:
b2 = BoundingBox(cx, bbox.y1, cx+w, bbox.y2)
b2.sentenceindex = bbox.sentenceindex
extra_bounding.append(b2)
elif classindex == len(nihongo_class)+1: # 縦並び
w, h = bbox.x2 - bbox.x1, bbox.y2 - bbox.y1
cy = (bbox.y1 + bbox.y2) // 2
if cy-h > 0:
b1 = BoundingBox(bbox.x1, cy-h, bbox.x2, cy)
b1.sentenceindex = bbox.sentenceindex
extra_bounding.append(b1)
if cy+h < hm_wd.shape[0]:
b2 = BoundingBox(bbox.x1, cy, bbox.x2, cy+h)
b2.sentenceindex = bbox.sentenceindex
extra_bounding.append(b2)
if len(extra_bounding) == 0:
break
sbox = SentenceBox(self.word_threshold)
sbox.boundingboxs = extra_bounding
sbox.make_detectionscore(hm_wd)
self._bounding_box(classifier_model, gray_img, scale_image, sbox.boundingboxs, batch_size_classifier, num_workers)
all_bounding = all_bounding + sbox.boundingboxs
all_bounding = [b for b in all_bounding if b.classifiercore() > self.class_threshold]
return all_bounding
import numpy as np
import cv2
import torch
import math
from sklearn.cluster import OPTICS
from .nihongo import nihongo_class
class BoundingBox(object):
def __init__(self, x1, y1, x2, y2):
self.x1 = x1
self.y1 = y1
self.x2 = x2
self.y2 = y2
self.detectionscore = 0.0
self.sentenceindex = 0
self.prediction = None
def set_prediction(self, pred):
self.prediction = pred
def iswordbox(self):
return self.prediction is not None and np.argmax(self.prediction) < len(nihongo_class)
def isword(self):
return self.iswordbox() and np.argmax(self.prediction) > 0
def word(self):
idx = np.argmax(self.prediction[1:len(nihongo_class)]) + 1
return idx, self.prediction[idx]
def classifiercore(self):
return self.word()[1]
def score(self):
return self.detectionscore * self.classifiercore()
class SentenceBox(object):
def __init__(self, word_threshold):
self.boundingboxs = []
self.word_threshold = word_threshold
def _conv3_filter(self, img, pos):
points = []
rects = []
sizes = []
for y in range(1,img.shape[0]-1):
for x in range(1,img.shape[1]-1):
if img[y,x]>self.word_threshold and img[y,x]>img[y-1,x] and img[y,x]>img[y-1,x-1] and img[y,x]>img[y-1,x+1] and img[y,x]>img[y,x-1] and img[y,x]>img[y,x+1] and img[y,x]>img[y+1,x] and img[y,x]>img[y+1,x-1] and img[y,x]>img[y+1,x+1]:
points.append((x,y))
w, h = pos[0][y,x], pos[1][y,x]
sizes.append(max(w,h))
w, h = 1+w*img.shape[1], 1+h*img.shape[0]
offw, offh = int(np.round(w)), int(np.round(h))
rects.append((x-offw,y-offh,x+offw,y+offh))
return points, rects, sizes
def make_boundingbox(self, hm_wd, hm_pos, min_bound=12, resize_val=1.1, aspect_val=1.25, dup_threathold=0.033):
pos, rcts, sizes = self._conv3_filter(hm_wd, hm_pos)
min_bound = min_bound // 2
for p, r, s in zip(pos, rcts, sizes):
x1, y1, x2, y2 = r
x1 = min(max(0,x1), hm_wd.shape[1])
y1 = min(max(0,y1), hm_wd.shape[0])
x2 = min(max(0,x2), hm_wd.shape[1])
y2 = min(max(0,y2), hm_wd.shape[0])
w, h = x2-x1, y2-y1
if min(w, h) >= min_bound:
self.boundingboxs.append(BoundingBox(x1, y1, x2, y2))
w2 = int(np.round((x2-x1) * resize_val))
h2 = int(np.round((y2-y1) * resize_val))
if w2 != w and h2 != h and min(w2, h2) >= min_bound:
xx1 = min(max(0, p[0] - w2//2), hm_wd.shape[1])
yy1 = min(max(0, p[1] - h2//2), hm_wd.shape[0])
xx2 = min(max(0, p[0] - w2//2 + w2), hm_wd.shape[1])
yy2 = min(max(0, p[1] - h2//2 + h2), hm_wd.shape[0])
self.boundingboxs.append(BoundingBox(xx1, yy1, xx2, yy2))
w2 = int(np.round((x2-x1) * aspect_val))
h2 = int(np.round((y2-y1) / aspect_val))
if w2 != w and h2 != h and min(w2, h2) >= min_bound:
xx1 = min(max(0, p[0] - w2//2), hm_wd.shape[1])
yy1 = min(max(0, p[1] - h2//2), hm_wd.shape[0])
xx2 = min(max(0, p[0] - w2//2 + w2), hm_wd.shape[1])
yy2 = min(max(0, p[1] - h2//2 + h2), hm_wd.shape[0])
self.boundingboxs.append(BoundingBox(xx1, yy1, xx2, yy2))
w2 = int(np.round((x2-x1) / aspect_val))
h2 = int(np.round((y2-y1) * aspect_val))
if w2 != w and h2 != h and min(w2, h2) >= min_bound:
xx1 = min(max(0, p[0] - w2//2), hm_wd.shape[1])
yy1 = min(max(0, p[1] - h2//2), hm_wd.shape[0])
xx2 = min(max(0, p[0] - w2//2 + w2), hm_wd.shape[1])
yy2 = min(max(0, p[1] - h2//2 + h2), hm_wd.shape[0])
self.boundingboxs.append(BoundingBox(xx1, yy1, xx2, yy2))
if s > dup_threathold:
w2 = int(np.round((x2-x1) * aspect_val))
h2 = int(np.round((y2-y1) * aspect_val))
if w2 != w and h2 != h and min(w2, h2) >= min_bound:
xx1 = min(max(0, p[0] - w2//2), hm_wd.shape[1])
yy1 = min(max(0, p[1] - h2//2), hm_wd.shape[0])
xx2 = min(max(0, p[0] - w2//2 + w2), hm_wd.shape[1])
yy2 = min(max(0, p[1] - h2//2 + h2), hm_wd.shape[0])
self.boundingboxs.append(BoundingBox(xx1, yy1, xx2, yy2))
def make_detectionscore(self, hm_wd_all):
for i in range(len(self.boundingboxs)):
x1, y1, x2, y2 = self.boundingboxs[i].x1, self.boundingboxs[i].y1, self.boundingboxs[i].x2, self.boundingboxs[i].y2
y_pred = hm_wd_all[y1:y2,x1:x2]
w, h = x2-x1, y2-y1
y_true = ((np.exp(-(((np.arange(w)-(w/2))/(w/10))**2)/2)).reshape(1,-1)
*(np.exp(-(((np.arange(h)-(h/2))/(h/10))**2)/2)).reshape(-1,1))
self.boundingboxs[i].detectionscore = 1.0 - np.mean((y_pred-y_true)**2)
def make_sentenceid(self, id):
for i in range(len(self.boundingboxs)):
self.boundingboxs[i].sentenceindex = id
class CenterLine:
def __init__(self, hm_sent, hm_word, hm_pos, p1, p2):
assert hm_sent.shape == hm_word.shape and hm_sent.shape[0] == hm_pos.shape[1] and hm_sent.shape[1] == hm_pos.shape[2], 'Invalid heatmap'
assert p1 != p2, 'Invalid point'
self.hm_sent = hm_sent
self.hm_word = hm_word
self.hm_pos = hm_pos
self.p1 = p1
self.p2 = p2
self.score = 0
w = []
dx = 1 if self.p2[0]>=self.p1[0] else -1
dy = 1 if self.p2[1]>=self.p1[1] else -1
for x in range(self.p1[0], self.p2[0]+dx, dx):
for y in range(self.p1[1], self.p2[1]+dy, dy):
m = max(self.hm_pos[0][y][x]*self.hm_pos.shape[0], self.hm_pos[1][y][x]*self.hm_pos.shape[1])
w.append(int(np.round(m)))
self.maxw = np.max(w)
self.stdw = np.std(w)
self.score = self._score()
def _intersect(self, p1, p2, p3, p4):
tc1 = float(p1[0] - p2[0]) * (p3[1] - p1[1]) + (p1[1] - p2[1]) * (p1[0] - p3[0])
tc2 = float(p1[0] - p2[0]) * (p4[1] - p1[1]) + (p1[1] - p2[1]) * (p1[0] - p4[0])
td1 = float(p3[0] - p4[0]) * (p1[1] - p3[1]) + (p3[1] - p4[1]) * (p3[0] - p1[0])
td2 = float(p3[0] - p4[0]) * (p2[1] - p3[1]) + (p3[1] - p4[1]) * (p3[0] - p2[0])
return tc1*tc2<0 and td1*td2<0
def _distance(self, p1, p2, other):
ab = [p2[0] - p1[0], p2[1] - p1[1]]
ap = [other[0] - p1[0], other[1] - p1[1]]
bp = [other[0] - p2[0], other[1] - p2[1]]
if (ab[0]==0 and ab[1] == 0) or (bp[0]==0 and bp[1] == 0) or (ap[0]==0 and ap[1] == 0):
return 0
d = np.cross(ab, ap)
l = np.sqrt(ab[0]**2+ab[1]**2)
e = d / l # 点と線の距離
v = [ab[0]/l, ab[1]/l]
m = np.dot(v, ap)
if m >= 0 and m <= l:
return abs(e)
return min(np.sqrt(ap[0]**2+ap[1]**2), np.sqrt(bp[0]**2+bp[1]**2))
def _score(self):
filt = np.zeros(self.hm_sent.shape, dtype=np.uint8)
filt = cv2.line(filt, tuple(self.p1), tuple(self.p2), (255,255,255), self.maxw)
return np.sum((self.hm_word > 0.015)[filt!=0])
def dist(self, other):
if self._intersect(self.p1, self.p2, other.p1, other.p2):
return 0
d1 = min(self._distance(self.p1, self.p2, other.p1), self._distance(self.p1, self.p2, other.p2))
d2 = min(self._distance(other.p1, other.p2, self.p1), self._distance(other.p1, other.p2, self.p2))
return min(d1, d2)
def cross(self, other):
return self.dist(other) < (self.maxw + other.maxw)/2
def contain(self, other):
if self._intersect(self.p1, self.p2, other.p1, other.p2):
return True
d = max(self._distance(self.p1, self.p2, other.p1), self._distance(self.p1, self.p2, other.p2))
return d < self.maxw
import numpy as np
def non_max_suppression(boxes, overlapThresh=0.2):
if len(boxes) == 0:
return []
sorted_box = sorted(boxes, key=lambda x:x.score())[::-1]
ignore_flg = [False] * len(sorted_box)
for i in range(len(sorted_box)):
if not ignore_flg[i]:
for j in range(i+1,len(sorted_box),1):
r1 = sorted_box[i]
r2 = sorted_box[j]
if r1.x1 <= r2.x2 and r2.x1 <= r1.x2 and r1.y1<= r2.y2 and r2.y1 <= r1.y2:
w = max(0, min(r1.x2,r2.x2) - max(r1.x1,r2.x1))
h = max(0, min(r1.y2,r2.y2) - max(r1.y1,r2.y1))
if w * h > (r2.x2-r2.x1)*(r2.y2-r2.y1)*overlapThresh:
ignore_flg[j] = True
return [sorted_box[i] for i in range(len(sorted_box)) if not ignore_flg[i]]
def column_wordlines(bbox, overlapThresh=0.1, overlapThresh_line=0.6):
def _1dim_non_suppression(ranges, overlapThresh):
if len(ranges) == 0:
return []
ignore_flg = [False] * len(ranges)
for i in range(len(ranges)):
if not ignore_flg[i]:
for j in range(i+1,len(ranges),1):
r1 = ranges[i]
r2 = ranges[j]
w = max(0, min(r1[1],r2[1]) - max(r1[0],r2[0]))
if w > (r2[1]-r2[0])*overlapThresh:
ignore_flg[j] = True
return [ranges[i] for i in range(len(ranges)) if not ignore_flg[i]]
box_range_x = [(b.x1,b.x2) for b in bbox]
box_range_y = [(b.y1,b.y2) for b in bbox]
cols = _1dim_non_suppression(box_range_x, overlapThresh)
rows = _1dim_non_suppression(box_range_y, overlapThresh)
stocked_flg = [False] * len(bbox)
lines = []
if len(cols) < len(rows): # 縦書き
for c in cols:
stocks = []
for i in range(len(bbox)):
if not stocked_flg[i]:
if c[0] < bbox[i].x2 and c[1] > bbox[i].x1:
w = max(0, min(c[1],bbox[i].x2) - max(c[0],bbox[i].x1))
if w > (bbox[i].x2-bbox[i].x1)*overlapThresh_line:
stocks.append(bbox[i])
stocked_flg[i] = True
lines.append(sorted(stocks, key=lambda x:x.y1))
lines = sorted(lines, key=lambda x: np.mean([y.x1 for y in x]))
else: # 横書き
for r in rows:
stocks = []
for i in range(len(bbox)):
if not stocked_flg[i]:
if r[0] < bbox[i].y2 and r[1] > bbox[i].y1:
h = max(0, min(r[1],bbox[i].y2) - max(r[0],bbox[i].y1))
if h >= (bbox[i].y2-bbox[i].y1)*overlapThresh_line:
stocks.append(bbox[i])
stocked_flg[i] = True
lines.append(sorted(stocks, key=lambda x:x.x1))
lines = sorted(lines, key=lambda x: np.mean([y.y1 for y in x]))
return lines
hiragana = \
['あ','い','う','え','お','か','き','く','け','こ','さ','し','す','せ','そ','た','ち','つ','て',
'と','な','に','ぬ','ね','の','は','ひ','ふ','へ','ほ','ま','み','む','め','も','ら','り','る',
'れ','ろ','が','ぎ','ぐ','げ','ご','ざ','じ','ず','ぜ','ぞ','だ','ぢ','づ','で','ど','ば','び',
'ぶ','べ','ぼ','ぱ','ぴ','ぷ','ぺ','ぽ','や','ゆ','よ','わ','を','ん']
katakana = \
['ア','イ','ウ','エ','オ','カ','キ','ク','ケ','コ','サ','シ','ス','セ','ソ','タ','チ','ツ','テ',
'ト','ナ','ニ','ヌ','ネ','ノ','ハ','ヒ','フ','ヘ','ホ','マ','ミ','ム','メ','モ','ラ','リ','ル',
'レ','ロ','ガ','ギ','グ','ゲ','ゴ','ザ','ジ','ズ','ゼ','ゾ','ダ','ヂ','ヅ','デ','ド','バ','ビ',
'ブ','ベ','ボ','パ','ピ','プ','ペ','ポ','ヤ','ユ','ヨ','ワ','ヲ','ン','ー',]
alphabet_upper = \
['A','B','C','D','E','F','G','H','I','J','K','L','M','N','O','P','Q','R','S','T','U','V',
'W','X','Y','Z']
alphabet_lower = \
['a','b','c','d','e','f','g','h','i','j','k','l','m','n','o','p','q','r','s','t','u','v',
'w','x','y','z']
numetric = ['0','1','2','3','4','5','6','7','8','9']
alphabet_num = alphabet_upper + alphabet_lower + numetric
kigou = \
['(',')','[',']','「','」','『','』','<','>','¥','/','÷','*','+','×','?','=','〜','|',':',
';','。','、','.',',']
jyouyou_kanji = \
['亜','哀','挨','愛','曖','悪','握','圧','扱','宛','嵐','安','案','暗','以','衣','位','囲','医',
'依','委','威','為','畏','胃','尉','異','移','萎','偉','椅','彙','意','違','維','慰','遺','緯',
'域','育','一','壱','逸','茨','芋','引','印','因','咽','姻','員','院','淫','陰','飲','隠','韻',
'右','宇','羽','雨','唄','鬱','畝','浦','運','雲','永','泳','英','映','栄','営','詠','影','鋭',
'衛','易','疫','益','液','駅','悦','越','謁','閲','円','延','沿','炎','怨','宴','媛','援','園',
'煙','猿','遠','鉛','塩','演','縁','艶','汚','王','凹','央','応','往','押','旺','欧','殴','桜',
'翁','奥','横','岡','屋','億','憶','臆','虞','乙','俺','卸','音','恩','温','穏','下','化','火',
'加','可','仮','何','花','佳','価','果','河','苛','科','架','夏','家','荷','華','菓','貨','渦',
'過','嫁','暇','禍','靴','寡','歌','箇','稼','課','蚊','牙','瓦','我','画','芽','賀','雅','餓',
'介','回','灰','会','快','戒','改','怪','拐','悔','海','界','皆','械','絵','開','階','塊','楷',
'解','潰','壊','懐','諧','貝','外','劾','害','崖','涯','街','慨','蓋','該','概','骸','垣','柿',
'各','角','拡','革','格','核','殻','郭','覚','較','隔','閣','確','獲','嚇','穫','学','岳','楽',
'額','顎','掛','潟','括','活','喝','渇','割','葛','滑','褐','轄','且','株','釜','鎌','刈','干',
'刊','甘','汗','缶','完','肝','官','冠','巻','看','陥','乾','勘','患','貫','寒','喚','堪','換',
'敢','棺','款','間','閑','勧','寛','幹','感','漢','慣','管','関','歓','監','緩','憾','還','館',
'環','簡','観','韓','艦','鑑','丸','含','岸','岩','玩','眼','頑','顔','願','企','伎','危','机',
'気','岐','希','忌','汽','奇','祈','季','紀','軌','既','无','記','起','飢','鬼','帰','基','寄',
'規','亀','喜','幾','揮','期','棋','貴','棄','毀','旗','器','畿','輝','機','騎','技','宜','偽',
'欺','義','疑','儀','戯','擬','犠','議','菊','吉','喫','詰','却','客','脚','逆','虐','九','久',
'及','弓','丘','旧','休','吸','朽','臼','求','究','泣','急','級','糾','宮','救','球','給','嗅',
'窮','牛','去','巨','居','拒','拠','挙','虚','許','距','魚','御','漁','凶','共','叫','狂','京',
'享','供','協','況','峡','挟','狭','恐','恭','胸','脅','強','教','郷','境','橋','矯','鏡','競',
'響','驚','仰','暁','業','凝','曲','局','極','玉','巾','斤','均','近','金','菌','勤','琴','筋',
'僅','禁','緊','錦','謹','襟','吟','銀','区','句','苦','駆','具','惧','愚','空','偶','遇','隅',
'串','屈','掘','窟','熊','繰','君','訓','勲','薫','軍','郡','群','兄','刑','形','系','径','茎',
'係','型','契','計','恵','啓','掲','渓','経','蛍','敬','景','軽','傾','携','継','詣','慶','憬',
'稽','憩','警','鶏','芸','艸','迎','鯨','隙','劇','撃','激','桁','欠','穴','血','決','結','傑',
'潔','月','犬','件','見','券','肩','建','研','県','倹','兼','剣','拳','軒','健','険','圏','堅',
'検','嫌','献','絹','遣','権','憲','賢','謙','鍵','繭','顕','験','懸','元','幻','玄','言','弦',
'限','原','現','舷','減','源','厳','己','戸','古','呼','固','股','虎','孤','弧','故','枯','個',
'庫','湖','雇','誇','鼓','錮','顧','五','互','午','呉','後','娯','悟','碁','語','誤','護','口',
'工','公','勾','孔','功','巧','広','甲','交','光','向','后','好','江','考','行','坑','孝','抗',
'攻','更','効','幸','拘','肯','侯','厚','恒','洪','皇','紅','荒','郊','香','候','校','耕','航',
'貢','降','高','康','控','梗','黄','喉','慌','港','硬','絞','項','溝','鉱','構','綱','酵','稿',
'興','衡','鋼','講','購','乞','号','合','拷','剛','傲','豪','克','告','谷','刻','国','黒','穀',
'酷','獄','骨','駒','込','頃','今','困','昆','恨','根','婚','混','痕','紺','魂','墾','懇','左',
'佐','沙','査','砂','唆','差','詐','鎖','座','挫','才','再','災','妻','采','砕','宰','栽','彩',
'採','済','祭','斎','細','菜','最','裁','債','催','塞','歳','載','際','埼','在','材','剤','財',
'罪','崎','作','削','昨','柵','索','策','酢','搾','錯','咲','冊','札','刷','刹','拶','殺','察',
'撮','擦','雑','皿','三','山','参','桟','蚕','惨','産','傘','散','算','酸','賛','残','斬','暫',
'士','子','支','止','氏','仕','史','司','四','市','矢','旨','死','糸','糸','至','伺','志','私',
'使','刺','始','姉','枝','祉','肢','姿','思','指','施','師','恣','紙','脂','視','紫','詞','歯',
'嗣','試','詩','資','飼','誌','雌','摯','賜','諮','示','字','寺','次','耳','自','似','児','事',
'侍','治','持','時','滋','慈','辞','磁','餌','璽','鹿','式','識','軸','七','𠮟','失','室','疾',
'執','湿','嫉','漆','質','実','芝','写','社','車','舎','者','射','捨','赦','斜','煮','遮','謝',
'邪','蛇','勺','尺','借','酌','釈','爵','若','弱','寂','手','主','守','朱','取','狩','首','殊',
'珠','酒','腫','種','趣','寿','受','呪','授','需','儒','樹','収','囚','州','舟','秀','周','宗',
'拾','秋','臭','修','袖','終','羞','習','週','就','衆','集','愁','酬','醜','蹴','襲','十','汁',
'充','住','柔','重','従','渋','銃','獣','縦','叔','祝','宿','淑','粛','縮','塾','熟','出','述',
'術','俊','春','瞬','旬','巡','盾','准','殉','純','循','順','準','潤','遵','処','初','所','書',
'庶','暑','署','緒','諸','女','如','助','序','叙','徐','除','小','升','少','召','匠','床','抄',
'肖','尚','招','承','昇','松','沼','昭','宵','将','消','症','祥','称','笑','唱','商','渉','章',
'紹','訟','勝','掌','晶','焼','焦','硝','粧','詔','証','言','象','傷','奨','照','詳','彰','障',
'憧','衝','賞','償','礁','鐘','上','丈','冗','条','状','乗','城','浄','剰','常','情','場','畳',
'蒸','縄','壌','嬢','錠','譲','醸','色','拭','食','植','殖','飾','触','嘱','織','職','辱','尻',
'心','申','伸','臣','芯','身','辛','侵','信','津','神','唇','娠','振','浸','真','針','深','紳',
'進','森','診','寝','慎','新','審','震','薪','親','人','刃','仁','尽','迅','甚','陣','尋','腎',
'須','図','水','吹','垂','炊','帥','粋','衰','推','酔','遂','睡','穂','錘','随','髄','枢','崇',
'数','据','杉','裾','寸','瀬','是','井','世','正','生','成','西','声','制','姓','征','性','青',
'斉','政','星','牲','省','凄','逝','清','盛','婿','晴','勢','聖','誠','精','製','誓','静','請',
'整','醒','税','夕','斥','石','赤','昔','析','席','脊','隻','惜','戚','責','跡','積','績','籍',
'切','折','拙','窃','接','設','雪','摂','節','説','舌','絶','千','川','仙','占','先','宣','専',
'泉','浅','洗','染','扇','栓','旋','船','戦','煎','羨','腺','詮','践','箋','銭','銑','潜','線',
'遷','選','薦','繊','鮮','全','前','善','然','禅','漸','膳','繕','狙','阻','祖','租','素','措',
'粗','組','疎','訴','塑','遡','礎','双','壮','早','争','走','奏','相','荘','草','送','倉','捜',
'挿','桑','巣','掃','曹','曽','爽','窓','創','喪','痩','葬','装','僧','想','層','総','遭','槽',
'踪','操','燥','霜','騒','藻','造','像','増','憎','蔵','贈','臓','即','束','足','促','則','息',
'捉','速','側','測','俗','族','属','賊','続','卒','率','存','村','孫','尊','損','遜','他','多',
'汰','打','妥','唾','堕','惰','駄','太','対','体','人','耐','待','怠','胎','退','帯','泰','堆',
'袋','逮','替','貸','隊','滞','態','戴','大','代','台','口','第','題','滝','宅','択','沢','卓',
'拓','託','濯','諾','濁','但','達','脱','奪','棚','誰','丹','旦','担','単','炭','胆','探','淡',
'短','嘆','端','綻','誕','鍛','団','男','段','断','弾','暖','談','壇','地','池','知','値','恥',
'致','遅','痴','稚','置','緻','竹','畜','逐','蓄','築','秩','窒','茶','着','嫡','中','仲','虫',
'虫','沖','宙','忠','抽','注','昼','柱','衷','酎','鋳','駐','著','貯','丁','弔','庁','兆','町',
'長','挑','帳','張','彫','眺','釣','頂','鳥','朝','脹','貼','超','腸','跳','徴','嘲','潮','澄',
'調','聴','懲','直','勅','捗','沈','珍','朕','陳','賃','鎮','追','椎','墜','通','痛','塚','漬',
'坪','爪','鶴','低','呈','廷','弟','定','底','抵','邸','亭','貞','帝','訂','庭','逓','停','偵',
'堤','提','程','艇','締','諦','泥','的','笛','摘','滴','適','敵','溺','迭','哲','鉄','徹','撤',
'天','典','店','点','展','添','転','塡','田','伝','殿','電','斗','吐','妬','徒','途','都','渡',
'塗','賭','土','奴','努','度','怒','刀','冬','灯','火','当','投','豆','東','到','逃','倒','凍',
'唐','島','桃','討','透','党','悼','盗','陶','塔','搭','棟','湯','痘','登','答','等','筒','統',
'稲','踏','糖','頭','謄','藤','闘','鬥','騰','同','洞','胴','動','堂','童','道','働','銅','導',
'瞳','峠','匿','特','得','督','徳','篤','毒','独','読','栃','凸','突','届','屯','豚','頓','貪',
'鈍','曇','丼','那','奈','内','梨','謎','鍋','南','軟','難','二','尼','弐','匂','肉','虹','日',
'入','乳','尿','任','妊','忍','認','寧','熱','年','念','捻','粘','燃','悩','納','能','脳','農',
'濃','把','波','派','破','覇','馬','婆','罵','拝','杯','背','肺','俳','配','排','敗','廃','輩',
'売','倍','梅','培','陪','媒','買','賠','白','伯','拍','泊','迫','剝','舶','博','薄','麦','漠',
'縛','爆','箱','箸','畑','肌','八','鉢','発','髪','伐','抜','罰','閥','反','半','氾','犯','帆',
'汎','伴','判','坂','阪','板','版','班','畔','般','販','斑','飯','搬','煩','頒','範','繁','藩',
'晩','番','蛮','盤','比','皮','妃','否','批','彼','披','肥','非','卑','飛','疲','秘','被','悲',
'扉','費','碑','罷','避','尾','眉','美','備','微','鼻','膝','肘','匹','必','泌','筆','姫','百',
'氷','表','俵','票','評','漂','標','苗','秒','病','描','猫','品','浜','水','貧','賓','頻','敏',
'瓶','不','夫','父','付','布','扶','府','怖','阜','附','訃','負','赴','浮','婦','符','富','普',
'腐','敷','膚','賦','譜','侮','武','部','舞','封','風','伏','服','副','幅','復','福','腹','複',
'覆','払','沸','仏','物','粉','紛','雰','噴','墳','憤','奮','分','文','聞','丙','平','兵','併',
'並','柄','陛','閉','塀','幣','弊','蔽','餅','米','壁','璧','癖','別','蔑','片','辺','返','変',
'偏','遍','編','弁','廾','便','勉','歩','保','哺','捕','補','舗','母','募','墓','慕','暮','簿',
'方','包','芳','邦','奉','宝','抱','放','法','泡','胞','俸','倣','峰','砲','崩','訪','報','蜂',
'豊','飽','褒','縫','亡','乏','忙','坊','妨','忘','防','房','肪','某','冒','剖','紡','望','傍',
'帽','棒','貿','貌','暴','膨','謀','頰','北','木','朴','牧','睦','僕','墨','撲','没','勃','堀',
'本','奔','翻','凡','盆','麻','摩','磨','魔','毎','妹','枚','昧','埋','幕','膜','枕','又','末',
'抹','万','満','慢','漫','未','味','魅','岬','密','蜜','脈','妙','民','眠','矛','務','無','夢',
'霧','娘','名','命','明','迷','冥','盟','銘','鳴','滅','免','面','綿','麺','茂','模','毛','妄',
'盲','耗','猛','網','目','黙','門','紋','問','匁','冶','夜','野','弥','厄','役','約','訳','薬',
'躍','闇','由','油','喩','愉','諭','輸','癒','唯','友','有','勇','幽','悠','郵','湧','猶','裕',
'遊','雄','誘','憂','融','優','与','予','余','人','誉','預','幼','用','羊','妖','洋','要','容',
'庸','揚','揺','葉','陽','溶','腰','様','瘍','踊','窯','養','擁','謡','曜','抑','沃','浴','欲',
'翌','翼','拉','裸','羅','来','雷','頼','絡','落','酪','辣','乱','卵','覧','濫','藍','欄','吏',
'利','里','理','痢','裏','履','璃','離','陸','立','律','慄','略','柳','流','留','竜','粒','隆',
'硫','侶','旅','虜','慮','了','両','良','料','涼','猟','陵','量','僚','領','寮','療','瞭','糧',
'力','緑','林','厘','倫','輪','隣','臨','瑠','涙','累','塁','類','令','礼','示','冷','励','戻',
'例','鈴','零','霊','隷','齢','麗','暦','歴','列','劣','烈','裂','恋','連','廉','練','錬','呂',
'炉','賂','路','露','老','労','弄','郎','朗','浪','廊','楼','漏','籠','六','録','麓','論','和',
'話','賄','脇','惑','枠','湾','腕']
nihongo = hiragana+katakana+alphabet_num+kigou+jyouyou_kanji
nihongo_class = ['']+nihongo
filter_word = \
[ ('り', 'リ', katakana, katakana),
('リ', 'り', hiragana, hiragana),
('へ', 'ヘ', katakana, katakana),
('ヘ', 'へ', hiragana, hiragana),
('べ', 'ベ', katakana, katakana),
('ベ', 'べ', hiragana, hiragana),
('ぺ', 'ペ', katakana, katakana),
('ペ', 'ぺ', hiragana, hiragana),
('か', 'ガ', katakana, katakana),
('ガ', 'か', hiragana, hiragana),
('口', 'ロ', katakana, katakana),
('ロ', '口', jyouyou_kanji, jyouyou_kanji),
('工', 'エ', katakana, katakana),
('エ', '工', jyouyou_kanji, jyouyou_kanji),
('二', 'ニ', katakana, katakana),
('こ', 'ニ', katakana, katakana),
('ニ', '二', jyouyou_kanji, jyouyou_kanji),
('こ', '二', jyouyou_kanji, jyouyou_kanji),
('ニ', 'こ', hiragana, hiragana),
('二', 'こ', hiragana, hiragana),
('一', 'ー', katakana, katakana),
('ー', '一', jyouyou_kanji, jyouyou_kanji),
('七', 'セ', katakana, katakana),
('セ', '七', jyouyou_kanji, jyouyou_kanji),
('八', 'ハ', katakana, katakana),
('ハ', '八', jyouyou_kanji, jyouyou_kanji),
('力', 'カ', katakana, katakana),
('刀', 'カ', katakana, katakana),
('カ', '力', jyouyou_kanji, jyouyou_kanji),
('カ', '刀', jyouyou_kanji, jyouyou_kanji),
('干', 'チ', katakana, katakana),
('千', 'チ', katakana, katakana),
('チ', '干', jyouyou_kanji, jyouyou_kanji),
('チ', '千', jyouyou_kanji, jyouyou_kanji),
('手', 'キ', katakana, katakana),
('キ', '手', jyouyou_kanji, jyouyou_kanji),
('J', 'ノ', katakana, katakana),
('ノ', 'J', alphabet_upper, alphabet_upper),
('ノ', 'J', None, alphabet_lower),
('j', 'ノ', katakana, katakana),
('ノ', 'j', alphabet_lower, alphabet_lower),
('T', '丁', jyouyou_kanji, jyouyou_kanji),
('丁', 'T', alphabet_upper, alphabet_upper),
('丁', 'T', None, alphabet_lower),
('0', 'o', alphabet_lower+alphabet_upper, alphabet_lower),
('0', 'O', alphabet_upper, alphabet_upper),
('o', '0', numetric, numetric),
('O', '0', numetric, numetric),
('1', 'l', alphabet_lower+alphabet_upper, alphabet_lower),
('|', 'l', alphabet_lower+alphabet_upper, alphabet_lower),
('1', 'I', alphabet_upper, alphabet_upper),
('|', 'I', alphabet_upper, alphabet_upper),
('1', 'I', None, alphabet_lower),
('|', 'I', None, alphabet_lower),
('l', '1', numetric, numetric),
('I', '1', numetric, numetric),
('|', '1', numetric, numetric),
('フ', '7', numetric, numetric),
('7', 'フ', katakana, katakana),
('5', 's', alphabet_lower+alphabet_upper, alphabet_lower),
('5', 'S', alphabet_upper, alphabet_upper),
('s', '5', numetric, numetric),
('S', '5', numetric, numetric),
('K', 'k', alphabet_lower, alphabet_lower),
('k', 'K', alphabet_upper, alphabet_upper),
('O', 'o', alphabet_lower, alphabet_lower),
('o', 'O', alphabet_upper, alphabet_upper),
('P', 'p', alphabet_lower, alphabet_lower),
('p', 'P', alphabet_upper, alphabet_upper),
('S', 's', alphabet_lower, alphabet_lower),
('s', 'S', alphabet_upper, alphabet_upper),
('U', 'u', alphabet_lower, alphabet_lower),
('u', 'U', alphabet_upper, alphabet_upper),
('V', 'v', alphabet_lower, alphabet_lower),
('v', 'V', alphabet_upper, alphabet_upper),
('V', 'v', alphabet_lower, alphabet_lower),
('v', 'V', alphabet_upper, alphabet_upper),
('W', 'w', alphabet_lower, alphabet_lower),
('w', 'W', alphabet_upper, alphabet_upper),
('X', 'x', alphabet_lower, alphabet_lower),
('x', 'X', alphabet_upper, alphabet_upper),
('Y', 'y', alphabet_lower, alphabet_lower),
('y', 'Y', alphabet_upper, alphabet_upper),
('Z', 'z', alphabet_lower, alphabet_lower),
('z', 'Z', alphabet_upper, alphabet_upper),
('十', '+', kigou, kigou),
('t', '+', kigou, kigou),
('メ', '+', kigou, kigou),
('+', '十', jyouyou_kanji, jyouyou_kanji),
('t', '十', jyouyou_kanji, jyouyou_kanji),
('メ', '十', jyouyou_kanji, jyouyou_kanji),
('+', 't', alphabet_lower+alphabet_upper, alphabet_lower),
('十', 't', alphabet_lower+alphabet_upper, alphabet_lower),
('メ', 'y', alphabet_lower+alphabet_upper, alphabet_lower),
('二', '=', kigou, kigou),
('ニ', '=', kigou, kigou),
('こ', '=', kigou, kigou),
('=', '二', jyouyou_kanji, jyouyou_kanji),
('=', 'ニ', katakana, katakana),
('=', 'こ', hiragana, hiragana),
('。', 'o', alphabet_lower+alphabet_upper, alphabet_lower),
('。', 'O', alphabet_upper, alphabet_upper),
('。', '0', numetric, numetric),
('o', '。', hiragana + katakana + jyouyou_kanji, None),
('O', '。', hiragana + katakana + jyouyou_kanji, None),
('0', '。', hiragana + katakana + jyouyou_kanji, None),
('2', 'っ', hiragana + jyouyou_kanji, ['た','ち','つ','て','と']),
('?', 'っ', hiragana + jyouyou_kanji, ['た','ち','つ','て','と']),
('つ', 'っ', hiragana + jyouyou_kanji, ['た','ち','つ','て','と']),
('ツ', 'ッ', katakana + jyouyou_kanji, ['タ','チ','ツ','テ','ト']),
('や', 'ゃ', ['き','し','ち','に','み','り','ぎ','ぢ','じ'], None),
('ゆ', 'ゅ', ['き','し','ち','に','み','り','ぎ','ぢ','じ'], None),
('よ', 'ょ', ['き','し','ち','に','み','り','ぎ','ぢ','じ'], None),
('ヤ', 'ャ', ['キ','シ','チ','ニ','ミ','リ','ギ','ヂ','ジ'], None),
('ユ', 'ュ', ['キ','シ','チ','ニ','ミ','リ','ギ','ヂ','ジ'], None),
('ヨ', 'ョ', ['キ','シ','チ','ニ','ミ','リ','ギ','ヂ','ジ'], None) ]
import numpy as np
import cv2
import gc
import os
import json
import argparse
import torch
from nets.detectionnet import get_detectionnet
from nets.classifiernet import get_classifiernet
from misc.nihongo import nihongo_class, filter_word
from misc.detection import Detector
from misc.nms import non_max_suppression, column_wordlines
parser = argparse.ArgumentParser()
parser.add_argument('images', metavar='file', type=str, nargs='+',
help='input image files')
parser.add_argument("--dpi", type=int, default=-1, help="image dpi")
parser.add_argument('--cpu', action='store_true', help="CPU mode (no GPU)")
parser.add_argument('--output_format', type=str, default="row", help="output format", choices=['row', 'json'])
parser.add_argument('--output_detect_img', action='store_true', help="output detected bounding box")
parser.add_argument('--low_gpu_memory', action='store_true', help="reduce gpu memory usage")
args = parser.parse_args()
def main():
d = []
for f in args.images:
if os.path.isfile(f):
d.append(f)
elif os.path.isdir(f):
d.extend([f+'/'+a for a in os.listdir(f)])
else:
print('Input file "%s" in not file or directory.'%file)
return
ocr_result = get_ocr(d, dpi=args.dpi, use_cuda=(not args.cpu), output_detect_img=args.output_detect_img, low_gpu_memory=args.low_gpu_memory)
if args.output_format == 'json':
print(json.dumps(ocr_result, ensure_ascii=False))
else:
for r in ocr_result:
print('file "%s" detected in %d dpi.'%(r['filename'],r['detected_dpi']))
for b in r['blocks']:
print('[Block #%d]'%b['id'])
for s in b['sentences']:
print(s['sent'])
def filter_block(sent):
for i in range(len(sent)):
for j in range(len(filter_word)):
if filter_word[j][0] == sent[i]:
if filter_word[j][2] == "":
bef = (i==0)
else:
bef = filter_word[j][2] is None or (i>0 and sent[i-1] in filter_word[j][2])
if filter_word[j][3] == "":
aft = (i==len(sent)-1)
else:
aft = filter_word[j][3] is None or (i<len(sent)-1 and sent[i+1] in filter_word[j][3])
if bef and aft:
sent[i] = filter_word[j][1]
def get_ocr(filelist,dpi,use_cuda=True,output_detect_img=False,low_gpu_memory=False):
det_model = 'models/detectionnet.model'
cls_model = 'models/classifiernet.model'
if not (os.path.isfile(det_model) and os.path.isfile(cls_model)):
print('Model file not found.')
return
for file in filelist:
if not os.path.isfile(file):
print('Input file "%s" not found.'%file)
return
model = get_detectionnet()
if use_cuda:
model.load_state_dict(torch.load(det_model))
else:
model.load_state_dict(torch.load(det_model, map_location=torch.device('cpu')))
dt = Detector(use_cuda=use_cuda, low_gpu_memory=low_gpu_memory)
detections = []
for file in filelist:
im = cv2.imread(file)
if im is None:
print('Cannot read input file "%s".'%file)
return
if len(im.shape) == 3:
im = cv2.cvtColor(im, cv2.COLOR_RGB2GRAY)
elif len(im.shape) != 2:
print('Cannot read input file "%s".'%file)
return
d = dt.detect_image(model, im, dpi)
detections.append(d)
del model
torch.cuda.empty_cache()
model = get_classifiernet(len(nihongo_class) + 2)
if use_cuda:
model.load_state_dict(torch.load(cls_model))
else:
model.load_state_dict(torch.load(cls_model, map_location=torch.device('cpu')))
boundings = []
for d in detections:
b = dt.bounding_box(model, d)
b = non_max_suppression(b)
boundings.append(b)
del model
torch.cuda.empty_cache()
results = []
for file, dtct, bbox in zip(filelist, detections, boundings):
detected_dpi, _, gray_img, scale_image, _ = dtct
detect_file = {'filename':file,'detected_dpi':detected_dpi,'blocks':[]}
if output_detect_img:
detect_img = cv2.imread(file, cv2.IMREAD_GRAYSCALE)
detect_img = cv2.cvtColor(detect_img, cv2.COLOR_GRAY2RGB)
if len(bbox) > 0:
for i in range(max([b.sentenceindex for b in bbox])+1):
bbox_sent = [b for b in bbox if b.sentenceindex == i]
cbox = column_wordlines(bbox_sent)
block_one = {'id':i,'sentences':[]}
for c in cbox:
blk = []
box = []
for b in c:
n, s = b.word()
if s > 0.3:
x1, y1, x2, y2 = b.x1 * 2, b.y1 * 2, b.x2 * 2, b.y2 * 2
x1 = int(np.round(x1 * scale_image[0]))
y1 = int(np.round(y1 * scale_image[1]))
x2 = int(np.round(x2 * scale_image[0]))
y2 = int(np.round(y2 * scale_image[1]))
x1 = min(max(0, x1), gray_img.shape[1])
y1 = min(max(0, y1), gray_img.shape[0])
x2 = min(max(0, x2), gray_img.shape[1])
y2 = min(max(0, y2), gray_img.shape[0])
blk.append(nihongo_class[n])
box.append((x1, y1, x2, y2, float(s)))
if output_detect_img:
cv2.rectangle(detect_img, (x1,y1), (x2,y2), (255,0,0), 2)
filter_block(blk)
sent = ''.join(blk)
sent_one = {'sent':sent,'bbox':[]}
for w,b in zip(blk,box):
box_one = {'word':w,'box':[b[0],b[1],b[2],b[3]],'score':b[4]}
sent_one['bbox'].append(box_one)
block_one['sentences'].append(sent_one)
detect_file['blocks'].append(block_one)
if output_detect_img:
bb = [b for s in block_one['sentences'] for b in s['bbox']]
if len(bb) > 0:
x1 = min([b['box'][0] for b in bb])
y1 = min([b['box'][1] for b in bb])
x2 = max([b['box'][2] for b in bb])
y2 = max([b['box'][3] for b in bb])
cv2.rectangle(detect_img, (x1,y1), (x2,y2), (0,255,0), 2)
cv2.putText(detect_img, '#%d'%block_one['id'], (x1,y1), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 0, 255), 2, cv2.LINE_AA)
if output_detect_img:
cv2.imwrite(file+'-detections.png', detect_img)
results.append(detect_file)
return results
if __name__ == '__main__':
main()
(py37) $ cd ~/workspace_py37/chapter08 (py37) $ cp -r ~/workspace_py37/sample/chapt08/nets/ ./
import torch
import torch.nn as nn
import torch.nn.functional as F
class CharactorNet(nn.Module):
def __init__(self, n_class, n_convs, n_channels):
super(CharactorNet, self).__init__()
channel = 42 # 最初のチャンネル数
layers = [nn.Conv2d(1, channel, 3, 1, 1), # 最初の畳み込み層
nn.ReLU(),
# この下が最初のDepthwise Convolution層
nn.Conv2d(channel,channel,3,1,1,groups=channel),
nn.ReLU(),
nn.BatchNorm2d(channel)]
for i in range(len(n_convs)): # ブロックのループ
in_channel = channel # ブロックの入力チャンネル
channel = n_channels[i] # ブロック内のチャンネル
layers.extend([ # ブロック最初のDepthwise Convolution層
nn.Conv2d(in_channel,channel,1,1,bias=False),
nn.ReLU(),
nn.Conv2d(channel,channel,3,1,1,groups=channel),
nn.ReLU(),
nn.BatchNorm2d(channel)
])
# ブロックにDepthwise Convolution層を追加
for _ in range(n_convs[i]-1):
layers.extend([
nn.Conv2d(channel,channel,1,1,bias=False),
nn.ReLU(),
nn.Conv2d(channel,channel,3,1,1,groups=channel),
nn.ReLU(),
nn.BatchNorm2d(channel)
])
# ブロックの最後はMaxPooling層
if i < len(n_convs)-1:
layers.extend([
nn.MaxPool2d(3,2,1),
])
self.layer = nn.Sequential(*layers) # 畳み込み層
self.fc = nn.Linear(channel,n_class) # 全結合層
def forward(self, input):
x = self.layer(input) # 畳み込み層を実行
x = F.adaptive_avg_pool2d(x, (1, 1)) # チャンネル方向へ平均する
x = x.view(x.size(0), -1) # バッチ×一次元のデータにする
result = self.fc(x) # クラス分類を行う
return result
def get_classifiernet(num_class):
model = CharactorNet(num_class,
n_convs=[1,4,9,1], # ブロック内の畳み込み層の数
n_channels=[128,384,1152,3456]) # チャンネル数
return model
(py37) $ cd ~/workspace_py37/chapter08 (py37) $ mkdir misc (py37) $ cp OCR_Japanease/misc/nihongo.py misc/nihongo.py
(py37) $ cd ~/workspace_py37/chapter08 (py37) $ cp OCR_Japanease/models/classifiernet.model ./classifiernet_orig.model
(py37) $ cd ~/workspace_py37/chapter08 (py37) $ mv ~/ダウンロード/IPAexfont00401.zip ./ (py37) $ unzip IPAexfont00401.zip Archive: IPAexfont00401.zip creating: IPAexfont00401/ inflating: IPAexfont00401/ipaexg.ttf inflating: IPAexfont00401/ipaexm.ttf inflating: IPAexfont00401/IPA_Font_License_Agreement_v1.0.txt inflating: IPAexfont00401/Readme_IPAexfont00401.txt (py37) $ mkdir fonts (py37) $ mv IPAexfont00401/ipaexg.ttf ./fonts (py37) $ mv IPAexfont00401/ipaexm.ttf ./fonts
(py37) cd ~/workspace_py37/chapter08 (py37) $ cp ~/workspace_py37/sample/chapt08/chapt08_1.py chapt08_1a.py
~/workspace_py37/chapter08
├── OCR_Japanease
├── chapt08_1a.py
├── classifiernet_orig.model
├── fonts
│ ├── ipaexg.ttf
│ └── ipaexm.ttf
├── misc
│ └── nihongo.py
└── nets
└── classifiernet.py# -*- coding: utf-8 -*-
##------------------------------------------
## 「PyTorch で始める AI開発」
## Chapter 08 / Section 024
## OCRにおける文字認識/モデルを学習させる
##
## 2021.10.11 Masahiro Izutsu
##------------------------------------------
## chapt08_1a.py (original: chapt08_1.py)
import os
import numpy as np
from tqdm import tqdm
from PIL import Image, ImageFont, ImageDraw
import torch
import torch.nn as nn
from torchvision import transforms
from nets.classifiernet import get_classifiernet
from misc.nihongo import nihongo_class
# GPUを使うかどうか
USE_DEVICE = 'cuda:0' if torch.cuda.is_available() else 'cpu'
IMAGE_SIZE = 56 # 文字画像のサイズ
BATCH_SIZE = 16 # 学習時のバッチサイズ
NUM_WORKERS = 4 # 読み込みスレッド数
NUM_EPOCHS = 20 # 学習エポック数
# PyTorchの内部を決定論的に設定する
torch.backends.cudnn.deterministic = True
torch.backends.cudnn.benchmark = False
# 乱数を初期化する
np.random.seed(0)
torch.manual_seed(0)
# フォントを読み込む
font_path = os.listdir('fonts/') # フォントファイルのリスト
ttf_fonts = [ImageFont.truetype('fonts/'+fp, 56) for fp in font_path]
# 文字部分のみを切り出すtransform
class CharactorCrop(nn.Module):
def __init__(self):
super().__init__()
def forward(self, img):
# Numpyにする
aimg = np.array(img)
where = np.where(aimg < 128) # 文字が書かれているピクセルの場所
# 文字が書かれた部分を切り出す
if len(where[0]) > 0 and len(where[1]) > 1:
_x1,_x2 = min(where[1]),max(where[1])
_y1,_y2 = min(where[0]),max(where[0])
x1 = max(0,_x1-1)
y1 = max(0,_y1-1)
x2 = min(_x2+1,aimg.shape[1])
y2 = min(_y2+1,aimg.shape[0])
aimg = aimg[y1:y2,x1:x2]
# ０から１の値にする
aimg = np.clip(aimg, 0, 255).astype(np.float32) / 255.
# 1チャンネルの画像Tensorにする
aimg = aimg.reshape((1,aimg.shape[0],aimg.shape[1]))
return torch.tensor(aimg, dtype=torch.float32)
# 文字画像を生成して返すクラス
class MyDataset(object):
def __init__(self):
# DAを行うtransforms
self.trans = transforms.Compose([
transforms.RandomRotation(degrees=15, fill=255),
transforms.RandomPerspective(p=1.0, fill=255),
CharactorCrop(), # 文字の場所だけ切り出す
transforms.Resize((IMAGE_SIZE,IMAGE_SIZE)),
])
def __getitem__(self, idx):
# 文字画像を生成して返す
word_class = idx // len(ttf_fonts)
ttf_font = ttf_fonts[idx % len(ttf_fonts)]
if word_class == 0: # not a word
message = '■' # 「文字ではない」クラスで使用する文字
else:
message = nihongo_class[word_class] # 文字
# 画像に文字を書く
bgcolor = np.random.randint(128) + 127 # 背景色
fgcolor = np.random.randint(128) # 文字色
img = Image.new(size=(128,128), mode='L', color=bgcolor)
draw = ImageDraw.Draw(img)
draw.text((30,30), message, font=ttf_font, fill=fgcolor)
# 画像とクラスを返す
return self.trans(img), torch.tensor(word_class, dtype=torch.int64)
def __len__(self):
# フォントファイル数×文字数
return len(nihongo_class) * len(ttf_fonts)
# OCRプログラムに合わせたクラス数でモデルを作る
model = get_classifiernet(len(nihongo_class) + 2)
# 学習済みモデルをファインチューニングする
model.load_state_dict(torch.load('classifiernet_orig.model', map_location=torch.device(USE_DEVICE)))
model.to(USE_DEVICE) # GPUを使うときはGPUメモリに乗せる
model.train() # モデルを学習用に設定する
# 学習の準備
optimizer = torch.optim.Adam(model.parameters(), lr=2e-5)
loss = nn.CrossEntropyLoss()
# データセットの作成
dataset = MyDataset()
# 別スレッドでデータを読み込む
data_loader = torch.utils.data.DataLoader(
dataset, batch_size=BATCH_SIZE, shuffle=True, num_workers=NUM_WORKERS)
# 学習ループ
for epoch in tqdm(range(NUM_EPOCHS)):
for X, y in data_loader: # 画像を読み込んでtensorにする
X = X.to(USE_DEVICE) # GPUを使うときはGPUメモリ上に乗せる
y = y.to(USE_DEVICE) # GPUを使うときはGPUメモリ上に乗せる
# ニューラルネットワークを実行
res = model(X)
# 合計の損失値を求める
losses = loss(res, y)
# 新しいバッチ分の学習を行う
optimizer.zero_grad() # 一つ前の勾配をクリア
losses.backward() # 損失値を逆伝播させる
optimizer.step() # 新しい勾配からパラメーターを更新する
# 最終的なモデルを保存する
torch.save(model.state_dict(), 'chapt08-model1.pth')
(py37) > cd \workspace_py37\chapter08 (py37) > python chapt08_1w.py 100%|█████████████████████████████████████████| 20/20 [33:30<00:00, 100.54s/it]・CPU (Intel® Core™ i7-1185G7)
(py37) $ cd \workspace_py37\chapter08 (py37) $ python3 chapt08_1a.py 100%|██████████████████████████████████████| 20/20 [49:23:56<00:00, 8891.84s/it]
| 機種 | 開始日時 | 終了日時 | 処理時間 (h:m) |
| GeForce GTX 1050 Ti Intel® Core™ i7-6700 | 10/13 04:31 | 10/13 05:05 | 00:34 |
| DELL Latitude 7520 Intel® Core™ i7-1185G7 CPU | 10/13 12:50 | 10/15 15:14 | 49:24 |
(py37) $ cd ~/workspace_py37/chapter08/OCR_Japanease/ (py37) $ cp ../chapt08-model1.pth models/classifiernet.model (py37) $ python3 ocr_japanease.py --cpu testshot1.png file "testshot1.png" detected in 72 dpi. [Block #0] コロナウイルスにまけるな [Block #1] がんばろう [Block #2] 日本※ ファインチューニング後の学習モデルで正常に動作することが確認できる。
PukiWiki 1.5.4 © 2001-2022 PukiWiki Development Team. Powered by PHP 7.4.33. HTML convert time: 0.024 sec.
