Colorization based on the Zhang Image Colorization Deep Learning Algorithm
This header to remain with this code.
The implementation of the colorization algorithm is from PyImageSearch
You can learn how the algorithm works and the details of this implementation here:
https://www.pyimagesearch.com/2019/02/25/black-and-white-image-colorization-with-opencv-and-deep-learning/
You will need to download the pre-trained data from this location and place in the model folder:
https://www.dropbox.com/s/dx0qvhhp5hbcx7z/colorization_release_v2.caffemodel?dl=1
GUI implemented in PySimpleGUI by the PySimpleGUI group
Of course, enjoy, learn , play, have fun!
Copyright 2019 PySimpleGUI
"""
import numpy as np
import cv2
import PySimpleGUI as sg
import os.path
version = '7 June 2020'
prototxt = r'model/colorization_deploy_v2.prototxt'
model = r'model/colorization_release_v2.caffemodel'
points = r'model/pts_in_hull.npy'
points = os.path.join(os.path.dirname(__file__), points)
prototxt = os.path.join(os.path.dirname(__file__), prototxt)
model = os.path.join(os.path.dirname(__file__), model)
if not os.path.isfile(model):
sg.popup_scrolled('Missing model file', 'You are missing the file "colorization_release_v2.caffemodel"',
'Download it and place into your "model" folder', 'You can download this file from this location:\n', r'https://www.dropbox.com/s/dx0qvhhp5hbcx7z/colorization_release_v2.caffemodel?dl=1')
exit()
net = cv2.dnn.readNetFromCaffe(prototxt, model) # load model from disk
pts = np.load(points)
# add the cluster centers as 1x1 convolutions to the model
class8 = net.getLayerId("class8_ab")
conv8 = net.getLayerId("conv8_313_rh")
pts = pts.transpose().reshape(2, 313, 1, 1)
net.getLayer(class8).blobs = [pts.astype("float32")]
net.getLayer(conv8).blobs = [np.full([1, 313], 2.606, dtype="float32")]
def colorize_image(image_filename=None, cv2_frame=None):
"""
Where all the magic happens. Colorizes the image provided. Can colorize either
a filename OR a cv2 frame (read from a web cam most likely)
:param image_filename: (str) full filename to colorize
:param cv2_frame: (cv2 frame)
:return: Tuple[cv2 frame, cv2 frame] both non-colorized and colorized images in cv2 format as a tuple
"""
# load the input image from disk, scale the pixel intensities to the range [0, 1], and then convert the image from the BGR to Lab color space
image = cv2.imread(image_filename) if image_filename else cv2_frame
scaled = image.astype("float32") / 255.0
lab = cv2.cvtColor(scaled, cv2.COLOR_BGR2LAB)
# resize the Lab image to 224x224 (the dimensions the colorization network accepts), split channels, extract the 'L' channel, and then perform mean centering
resized = cv2.resize(lab, (224, 224))
L = cv2.split(resized)[0]
L -= 50
# pass the L channel through the network which will *predict* the 'a' and 'b' channel values
'print("[INFO] colorizing image...")'
net.setInput(cv2.dnn.blobFromImage(L))
ab = net.forward()[0, :, :, :].transpose((1, 2, 0))
# resize the predicted 'ab' volume to the same dimensions as our input image
ab = cv2.resize(ab, (image.shape[1], image.shape[0]))
# grab the 'L' channel from the *original* input image (not the resized one) and concatenate the original 'L' channel with the predicted 'ab' channels
L = cv2.split(lab)[0]
colorized = np.concatenate((L[:, :, np.newaxis], ab), axis=2)
# convert the output image from the Lab color space to RGB, then clip any values that fall outside the range [0, 1]
colorized = cv2.cvtColor(colorized, cv2.COLOR_LAB2BGR)
colorized = np.clip(colorized, 0, 1)
# the current colorized image is represented as a floating point data type in the range [0, 1] -- let's convert to an unsigned 8-bit integer representation in the range [0, 255]
colorized = (255 * colorized).astype("uint8")
return image, colorized
def convert_to_grayscale(frame):
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY) # Convert webcam frame to grayscale
gray_3_channels = np.zeros_like(frame) # Convert grayscale frame (single channel) to 3 channels
gray_3_channels[:, :, 0] = gray
gray_3_channels[:, :, 1] = gray
gray_3_channels[:, :, 2] = gray
return gray_3_channels
# --------------------------------- The GUI ---------------------------------
# First the window layout...2 columns
left_col = [[sg.Text('Folder'), sg.In(size=(25,1), enable_events=True ,key='-FOLDER-'), sg.FolderBrowse()],
[sg.Listbox(values=[], enable_events=True, size=(40,20),key='-FILE LIST-')],
[sg.CBox('Convert to gray first',key='-MAKEGRAY-')],
[sg.Text('Version ' + version, font='Courier 8')]]
images_col = [[sg.Text('Input file:'), sg.In(enable_events=True, key='-IN FILE-'), sg.FileBrowse()],
[sg.Button('Colorize Photo', key='-PHOTO-'), sg.Button('Start Webcam', key='-WEBCAM-'), sg.Button('Save File', key='-SAVE-'), sg.Button('Exit')],
[sg.Image(filename='', key='-IN-'), sg.Image(filename='', key='-OUT-')],]
# ----- Full layout -----
layout = [[sg.Column(left_col), sg.VSeperator(), sg.Column(images_col)]]
# ----- Make the window -----

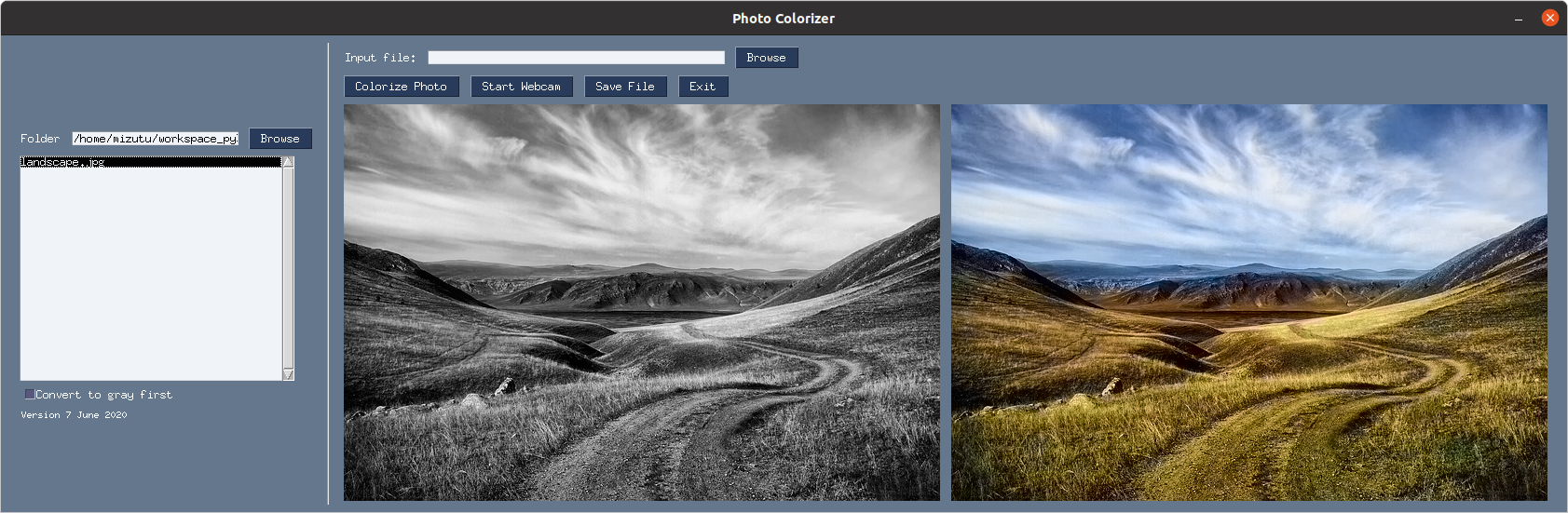

window = sg.Window('Photo Colorizer', layout, grab_anywhere=True)
# ----- Run the Event Loop -----
prev_filename = colorized = cap = None
while True:
event, values = window.read()
if event in (None, 'Exit'):
break
if event == '-FOLDER-': # Folder name was filled in, make a list of files in the folder
folder = values['-FOLDER-']
img_types = (".png", ".jpg", "jpeg", ".tiff", ".bmp")
# get list of files in folder
try:
flist0 = os.listdir(folder)
except:
continue
fnames = [f for f in flist0 if os.path.isfile(
os.path.join(folder, f)) and f.lower().endswith(img_types)]
window['-FILE LIST-'].update(fnames)
elif event == '-FILE LIST-': # A file was chosen from the listbox
try:
filename = os.path.join(values['-FOLDER-'], values['-FILE LIST-'][0])
image = cv2.imread(filename)
window['-IN-'].update(data=cv2.imencode('.png', image)[1].tobytes())
window['-OUT-'].update(data='')
window['-IN FILE-'].update('')
if values['-MAKEGRAY-']:
gray_3_channels = convert_to_grayscale(image)
window['-IN-'].update(data=cv2.imencode('.png', gray_3_channels)[1].tobytes())
image, colorized = colorize_image(cv2_frame=gray_3_channels)
else:
image, colorized = colorize_image(filename)
window['-OUT-'].update(data=cv2.imencode('.png', colorized)[1].tobytes())
except:
continue
elif event == '-PHOTO-': # Colorize photo button clicked
try:
if values['-IN FILE-']:
filename = values['-IN FILE-']
elif values['-FILE LIST-']:
filename = os.path.join(values['-FOLDER-'], values['-FILE LIST-'][0])
else:
continue
if values['-MAKEGRAY-']:
gray_3_channels = convert_to_grayscale(cv2.imread(filename))
window['-IN-'].update(data=cv2.imencode('.png', gray_3_channels)[1].tobytes())
image, colorized = colorize_image(cv2_frame=gray_3_channels)
else:
image, colorized = colorize_image(filename)
window['-IN-'].update(data=cv2.imencode('.png', image)[1].tobytes())
window['-OUT-'].update(data=cv2.imencode('.png', colorized)[1].tobytes())
except:
continue
elif event == '-IN FILE-': # A single filename was chosen
filename = values['-IN FILE-']
if filename != prev_filename:
prev_filename = filename
try:
image = cv2.imread(filename)
window['-IN-'].update(data=cv2.imencode('.png', image)[1].tobytes())
except:
continue
elif event == '-WEBCAM-': # Webcam button clicked
sg.popup_quick_message('Starting up your Webcam... this takes a moment....', auto_close_duration=1, background_color='red', text_color='white', font='Any 16')
window['-WEBCAM-'].update('Stop Webcam', button_color=('white','red'))
cap = cv2.VideoCapture(0) if not cap else cap
while True: # Loop that reads and shows webcam until stop button
ret, frame = cap.read() # Read a webcam frame
gray_3_channels = convert_to_grayscale(frame)
image, colorized = colorize_image(cv2_frame=gray_3_channels) # Colorize the 3-channel grayscale frame
window['-IN-'].update(data=cv2.imencode('.png', gray_3_channels)[1].tobytes())
window['-OUT-'].update(data=cv2.imencode('.png', colorized)[1].tobytes())
event, values = window.read(timeout=0) # Update the window outputs and check for new events
if event in (None, '-WEBCAM-', 'Exit'): # Clicked the Stop Webcam button or closed window entirely
window['-WEBCAM-'].update('Start Webcam', button_color=sg.theme_button_color())
window['-IN-'].update('')
window['-OUT-'].update('')
break
elif event == '-SAVE-' and colorized is not None: # Clicked the Save File button
filename = sg.popup_get_file('Save colorized image.\nColorized image be saved in format matching the extension you enter.', save_as=True)
try:
if filename:
cv2.imwrite(filename, colorized)
sg.popup_quick_message('Image save complete', background_color='red', text_color='white', font='Any 16')
except:
sg.popup_quick_message('ERROR - Image NOT saved!', background_color='red', text_color='white', font='Any 16')
# ----- Exit program -----
window.close()
